Blackvue Dr770 X 2 Ch Lte Front & Rear Camera With Sim Card Input For Cloud Service 64 Gb

  • Sale
  • $769.95
  • Regular price $829.95
Tax included. Shipping calculated at checkout.


BlackVue DR770X, 2 channel with LTE
Insert the SIM Card in the tray, power the BlackVue, then follow the step in the BlackVue App’s “Connect to Cloud” menu.

Includes 1GB free month trial. 1GB, 3GB and 5GB plans available. Pay monthly. Cancel anytime.

A Dashcam Built For The Cloud
Built-in 4G LTE connectivity makes connecting to the Cloud hassle-free.
With Mobile Hotspot Function, use your BlackVue as a Wi-Fi router for up to five devices.

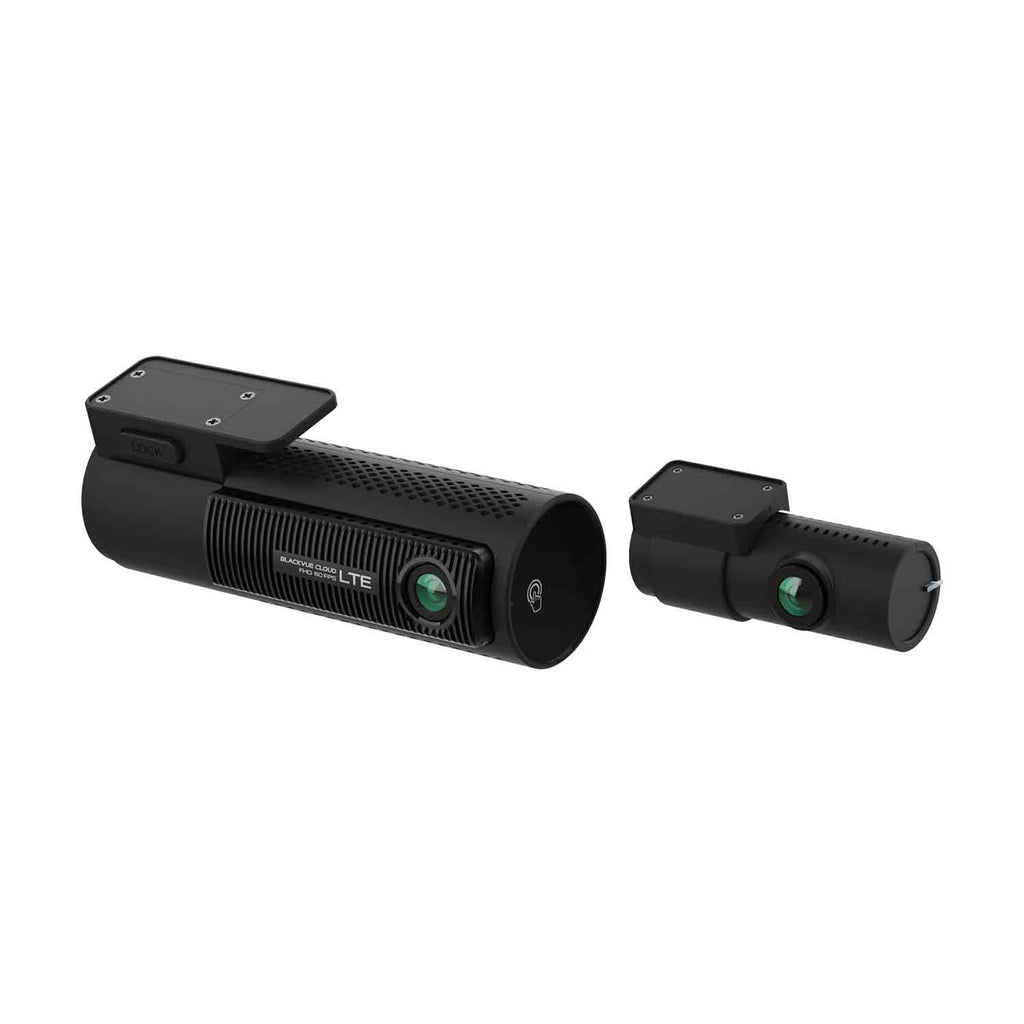

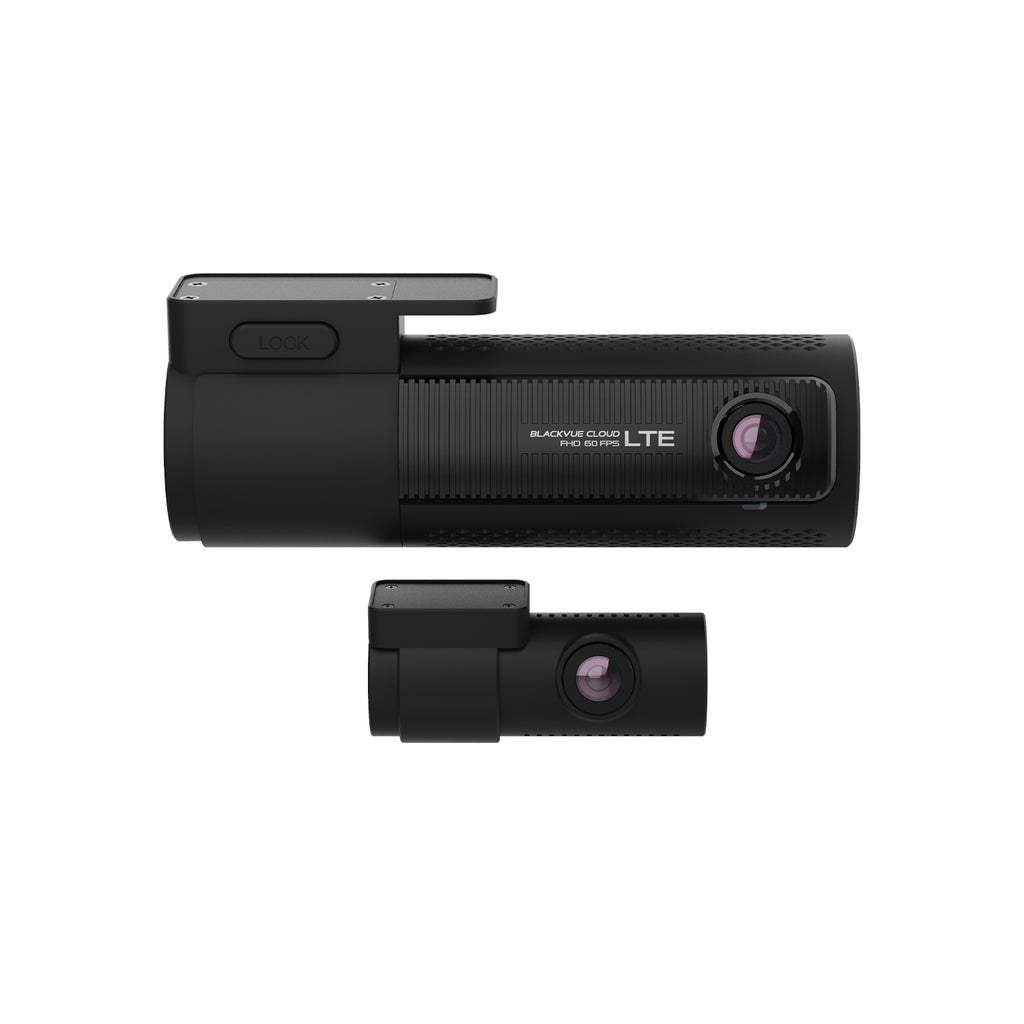

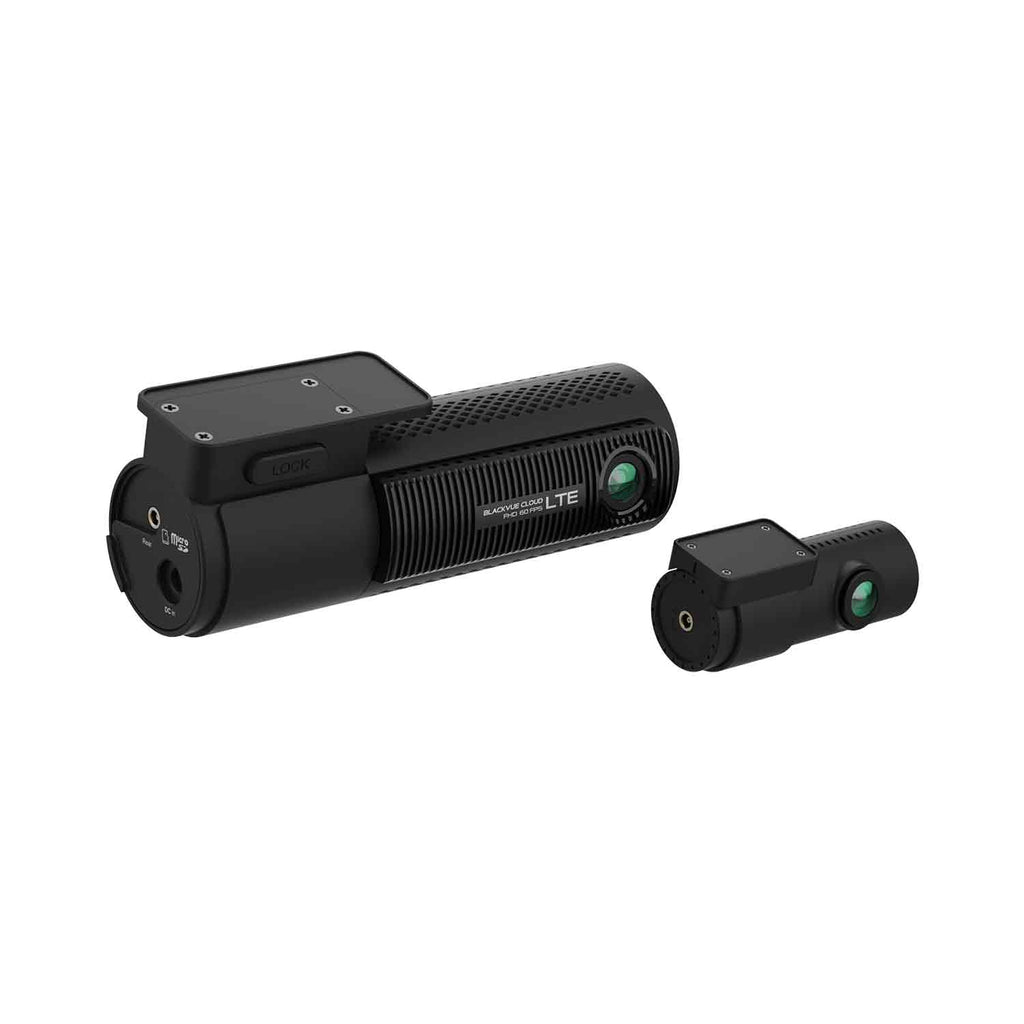

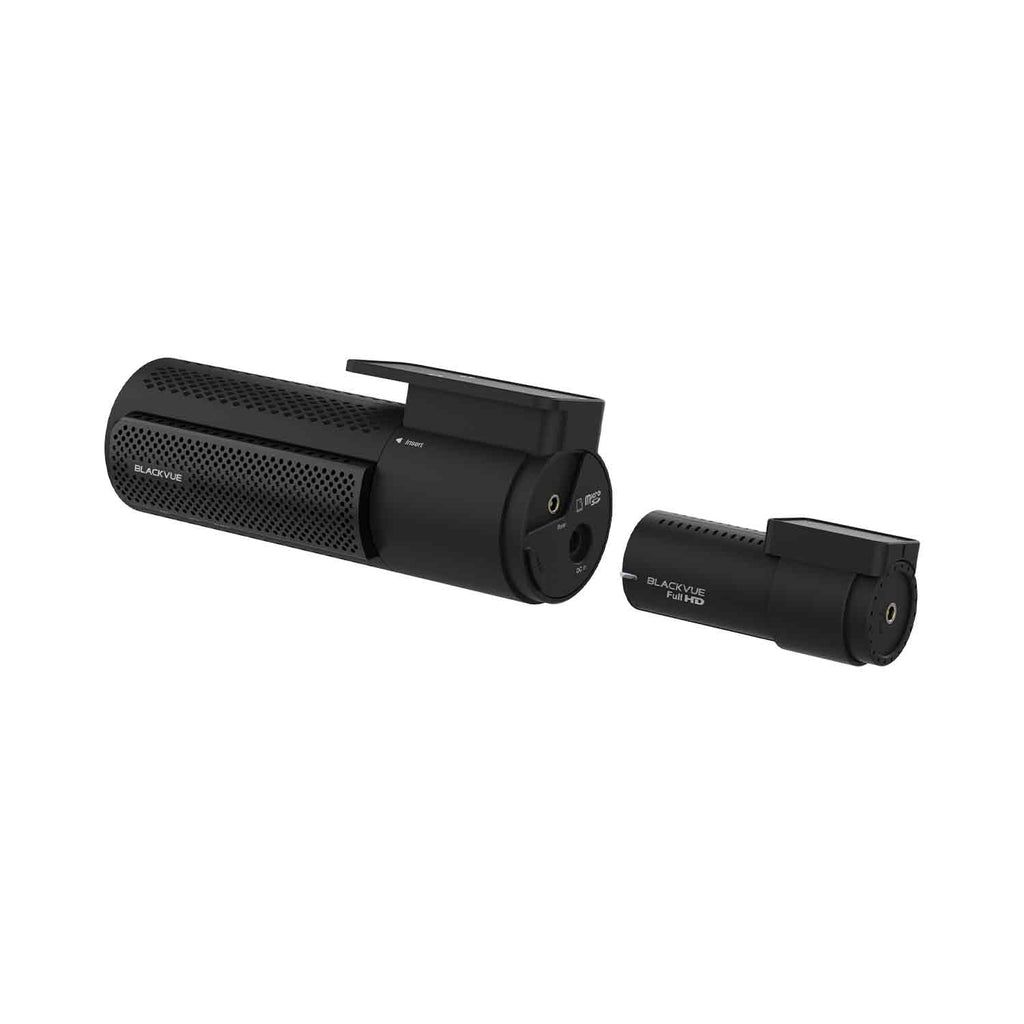

Dual Full HD 1080p cameras (front 60 / rear 30 frames per second) provide fluid videos of the front and back of your car at a wide 139° view angle.

Sony STARVIS™ imaging sensors—a benchmark in video clarity under low light—equip both front and rear cameras, so whether you are driving or parked, crucial details are captured perfectly.

• Mobile Hotspot Function
• Seamless Pairing with the BlackVue App
• LTE, Wi-Fi and GPS All Built-in
• Built-in Speaker, Impact Sensor and Motion Detection
• BlackVue App (iOS, Android) and Viewer (Windows/Mac/Web)

Specifications

Model Name DR770X-2CH LTE (NA)
Channel
2CH

Highlights
Built-in 4G LTE, Sony STARVIS image sensors

Product Dimensions
Front: Black / Width 137.6 mm x Height 43 mm / 159 g
Rear: Black / Width 67.4 mm x Height 25 mm / 25 g

Rear Camera Connection
Coaxial cable

Memory Support
microSD card up to 256GB

Recording Modes
Normal recording, Event recording (when impact is detected in normal and parking mode), Manual recording and Parking recording (when motion is detected).
* When using Hardwiring Power Cable, ACC+ will trigger parking mode. When using other methods, G-sensor will trigger parking mode.

Parking Mode
YES (with accessory)

Parking Mode Event Voice Notifications
YES

Imaging Sensor
Front: Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel)
Rear: Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel)

Viewing Angle
Front: Diagonal 139°, Horizontal 116°, Vertical 61°
Rear: Diagonal 139°, Horizontal 116°, Vertical 61°

Resolution Frame Rate
Front: Full HD (1920×1080) @ 60 fps
Rear: Full HD (1920×1080) @ 30 fps
* Frame rate may vary during Wi-Fi streaming.

Video Codec
H.264 (AVC)

Image Quality and Bitrate Front/Rear
Highest (Extreme): 25+10 Mbps
Highest: 12+10 Mbps
High: 10+8 Mbps
Normal: 8+6 Mbps

Format Free
YES (Adaptive)

Event File Overwrite Protection
YES (up to 50)

SD Card Failure Alert
YES

Scheduled Reboot
YES

Video File Extension
MP4

Wi-Fi
Built-in (802.11n (2.4~2.4835 GHz))

Cloud Compatible
YES

GPS
Built-in (Dual Band: GPS, GLONASS)

Microphone
Built-in

Speaker
Built-in

Impact Sensor
3-Axis Acceleration Sensor

LED Indicators
Front: Recording LED, GPS LED, B/W/L (Bluetooth/Wi-Fi/LTE) LED, Front Security LED
Rear: Rear Security LED

Operation Temperature
-20 °C - 70 °C (-4 °F - 158 °F)

Storage Temperature
-20 °C - 70 °C (-4 °F - 158 °F)

High Temp Cut Off
Approx. 80 °C (176 °F)


Input Power
DC 12V-24V (3 pole DC Plug (Ø3.5d x Ø1.1)) to Wires (Black: GND / Yellow: B+ / Red: ACC)

Power Consumption Hour
Normal Mode (GPS On/Cloud On) : Avg. 470mA/12V
Normal Mode (GPS On/Cloud Off) : Avg. 410mA/12V
Parking Mode (GPS Off/Cloud On) : Avg. 370mA/12V
Parking Mode (GPS Off/Cloud Off) : Avg. 310mA/12V
* Actual power consumption may vary depending on use conditions and environment.
* Model DR770X-2CH LTE should be used only in circuits that satisfy Limited Power Source.
(Maximum power consumption is to be less than 100 VA or 8 A).

Certifications
Front: FCC, ISED, CE, UKCA, RCM, Telec, RoHS, WEEE, KC
Rear: FCC, ISED, CE, UCKA, RCM, RoHS, WEEE, KC

Software
BlackVue Viewer
* Windows 7 or higher, Mac Sierra OS X (10.12) or higher
BlackVue Web Viewer
* Chrome 71 or higher, Safari 13.0 or higher

Others
Built-in 4G LTE module compatible with Nano-SIM.
Frequency Bands: B2, B4, B12
