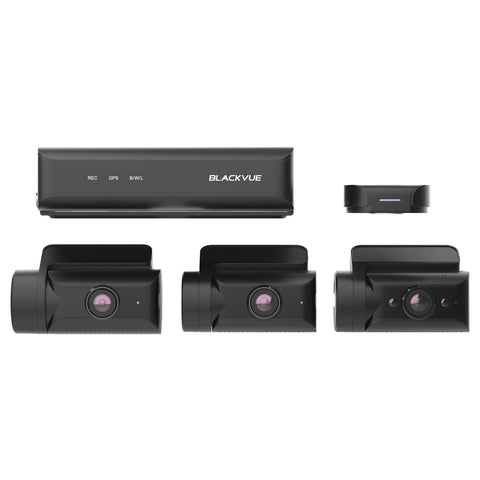

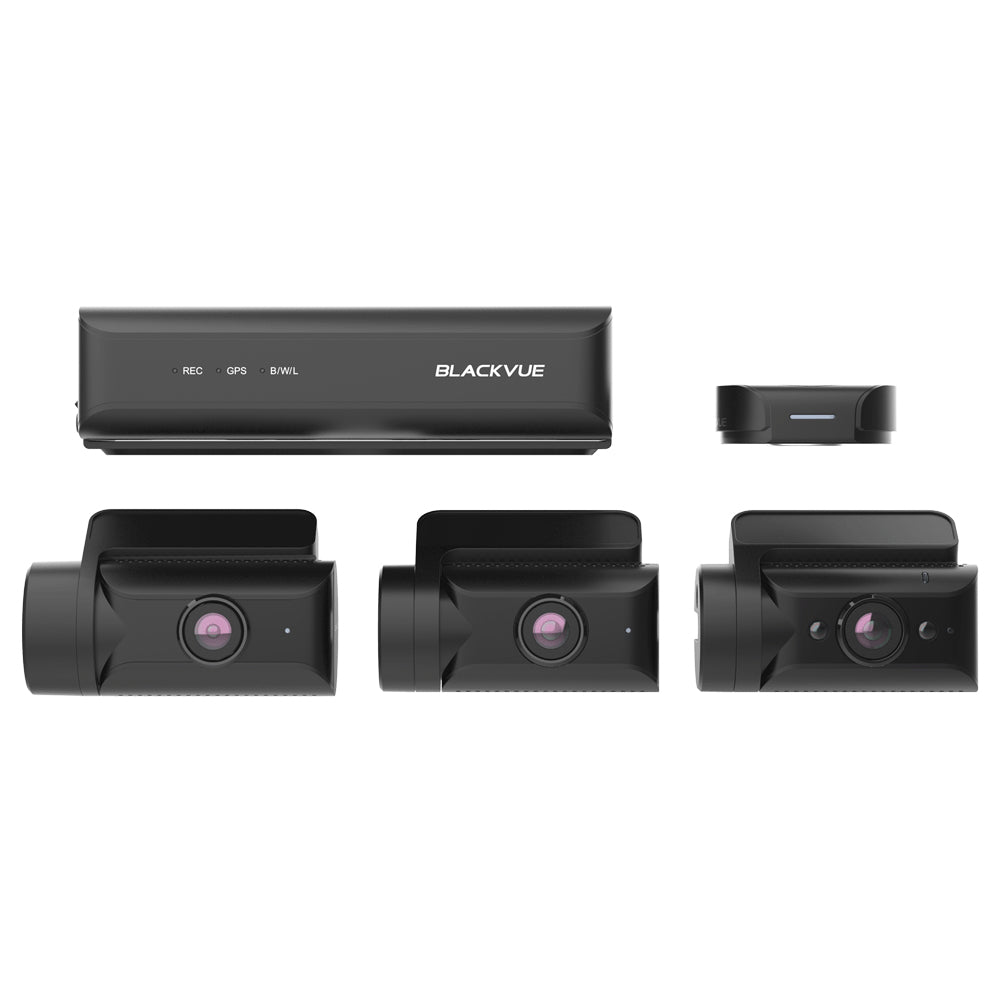

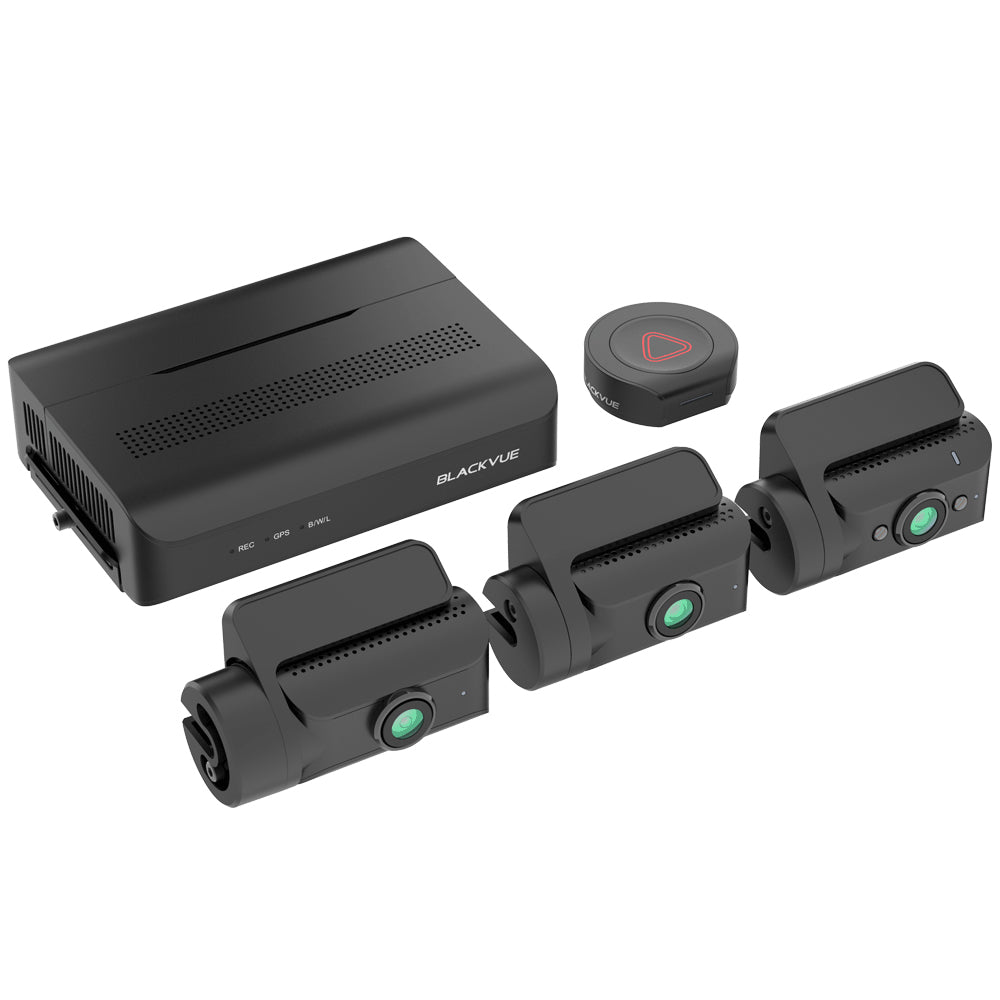

BlackVue DR770X Box-3CH Pro features front, rear and interior protection for your vehicle, powered by Sony image sensors for best image quality under any light. Also included are GPS logger, Wireless Button, built-in Wi-Fi, Cloud connectivity and built-in voltage monitoring for Parking Mode.

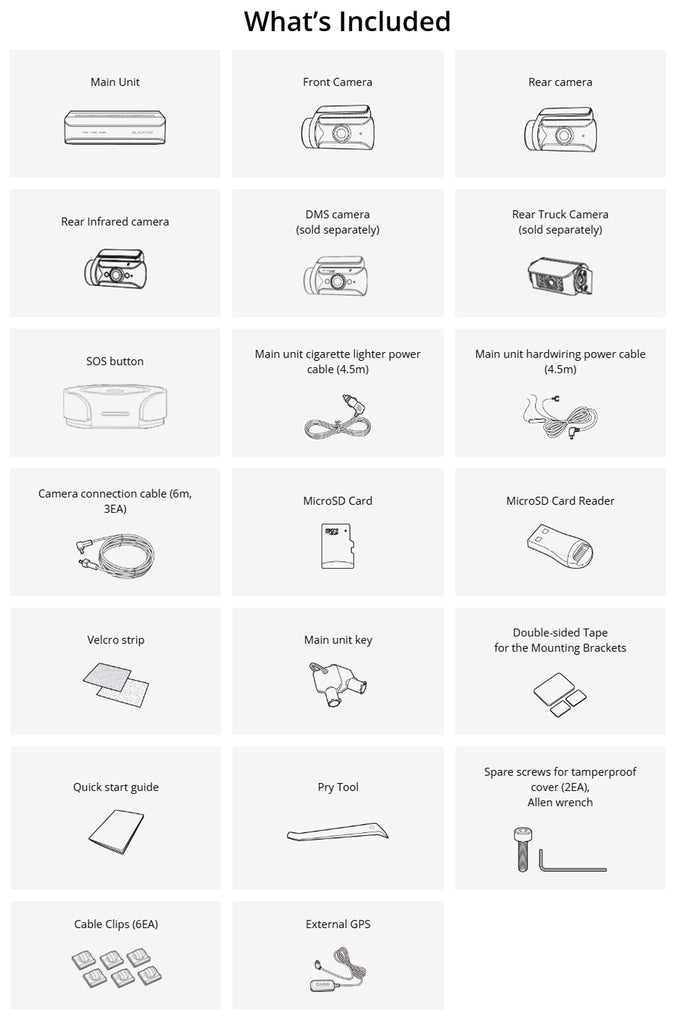

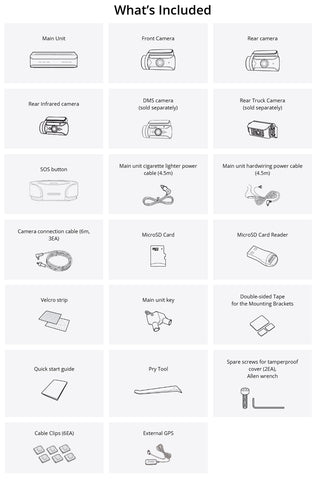

What's Included?
• Main Unit
• Front Camera
• Rear Camera
• Rear Infrared Camera
• SOS Button
• Main unit cigarette lighter power cable (4.5M)
• Main unit hard wiring power cable (4.5m)
• Camera connection cable (6m, 3EA)
• Micro SD with Card Reader
• Quick start Guide
• Mounting Tape and Main unit key
Specifications
Model Name DR770X Box-3CH Pro
Channel
3CH
Highlights
Full HD + Full HD + Full HD (Front + Rear + Interior), Cloud, Wi-Fi, Triple Sony Sensors, External GPS and LTE Module
Product Dimensions
Main unit : Black / Length 135.0 mm x Width 101.0 mm x Height 37.5 mm / 225 g
Front : Black / Length 77.5 mm x Width 34 mm x Height 49.5 mm / 61 g
Rear : Black / Length 69.5 mm x Width 32.0 mm x Height 48.3 mm / 46 g
Interior IR : Black / Length 69.5 mm x Width 32.0 mm x Height 48.3 mm / 47 g
Wireless Button : Black / Length 45.2 mm x Width 42.0 mm x Height 14.5 mm / 23 g
Rear Camera Connection
Coaxial cable
Memory Support
microSD card up to 512GB
Recording Modes
Normal recording, Event recording (when the impact is detected in normal and parking mode),
Manual recording and Parking recording (when motion is detected) * When using Hardwiring Power Cable,
ACC+ will trigger parking mode. When using other methods, G-sensor will trigger parking mode.
Imaging Sensor
Front: STARVIS CMOS Sensor (Approx. 2.1 M Pixel)
Rear: STARVIS CMOS Sensor (Approx. 2.1 M Pixel)
Interior IR: STARVIS CMOS Sensor (Approx. 2.1 M Pixel)
Viewing Angle
Front(FC1) : Diagonal 139°, Horizontal 116°, Vertical 61°
Rear(RC1-C) : Diagonal 139°, Horizontal 116°, Vertical 61°
Interior IR(RC1-IR-C) : Diagonal 180°, Horizontal 150°, Vertical 93°
Resolution Frame Rate
Front / Rear / Interior IR
Full HD (1920×1080) @ 60 fps – Full HD (1920×1080) @ 30 fps- Full HD (1920×1080) @ 30 fps
*Frame rate may vary during Wi-Fi streaming.
Video Codec
H.264 (AVC)
Image Quality and Bitrate Front/Rear
Front / Rear / Interior
Extreme: 16 + 10 + 10 Mbps
Highest: 12 + 10 + 10 Mbps
High: 10 + 8 + 8 Mbps
Normal: 8 + 6 + 6 Mbps
Format Free
YES (Adaptive)
Event File Overwrite Protection
YES (up to 51)
Specifications
SD Card Failure Alert YES
Scheduled Reboot YES
Video File Extension MP4
Wi-Fi Built-in (802.11 b.g.n)
Cloud Compatible YES
GPS External (Dual Band : GPS, GLONASS)
Microphone Built-in
Speaker Built-in
Impact Sensor 3-Axis Acceleration Sensor
LED Indicators Main unit: Recording LED, GPS LED, B/W/L (Bluetooth/Wi-Fi/LTE) LED, Front Security LED
Front: Front & Rear Security LED
Rear: Front & Rear Security LED
Interior IR: Front & Rear Security LED
EB-1: Operating / Battery low voltage LED
Rear Camera IR Illumination Interior IR: 940nm (2 Infrared (IR) LEDs)
Button EB-1 button : Press the button – manual recording.
Operation Temperature -20°C – 70°C (-4°F – 158°F )
Storage Temperature -20°C – 80°C (-4°F – 176°F )
High Temp Cut Off Approx. 75 °C (167 °F)
Backup Battery Built-in supercapacitor
Input Power DC 12V-24V (3 pole DC Plug(Ø3.5d x Ø1.1) to Wires (Black: GND / Yellow: B+ / Red: ACC)
Power Consumption Hour Normal Mode (GPS On/3CH) : Avg. 750mA/12V
Parking Mode (GPS Off/3CH) : Avg. 600mA/12V
* Approx.40mA increase in current when Interior Camera IR LEDs are ON.
* Actual power consumption may vary depending on use conditions and environment.
Certifications Front: FCC, CE, Telec, IC, UKCA, RoHS, WEEE, RCM
Rear: FCC, IC CE, UKCA, RCM, RoHS, WEEE, KC
Software BLACKVUE Viewer
* Windows 7 or higher, Mac Sierra OS X (10.12) or higher
BLACKVUE Web Viewer
* Chrome 71 or higher, Safari 13.0 or higher
Application BLACKVUE Application
* Android 8.0 or higher, iOS 13.0 or higher
Others Adaptive Format Free File Management System
Bluetooth Built-in (V2.1+EDR/4.2)
LTE External (optional)
